The BOZZYS Self-locking emergency stop lockout provides an all-around safe solution to prevent unauthorized use of the emergency stop control. Designed for industrial applications where safety and promptness are necessary, this superior lock-out device keeps push/pull and twist-release emergency stop buttons locked until they are intentionally accessed by authorized personnel. The self-contained lockout core dispels the need to buy an additional padlock; this simplifies installation and makes it far more efficient and cost-effective. The designers had a 22mm diameter switch in mind when creating this. Users can view all critical labels without compromising safety, thanks to the transparent cover equipped with a hinged door for easy monitoring of equipment labels and nameplates.
Key Features and Benefits
The following are key features:
a) Easy Installation for Quick Setup
Unlike other traditional lockout devices, which rely on extra padlocks or additional accessories, the Self locking emergency stop lockout integrates a lockout core within the device itself. This integral feature will make installation fast, and cost-effective. Since no additional hardware or accessories are required for installation, workers will set up the lockout quickly and move on to more important work, thus increasing the general efficiency of the operation.
b) Clear Visibility with Transparent, Accessible Design
This is a transparent-covered lockout to ensure that safety labels and equipment information are always visible. Hinged to stay open when the device is in use, this allows easy access for authorized personnel to actuate the emergency stop button when required. The design allows for much easier use and assists with compliance issues because all the information is visible to support safe operation and quick access when it’s critical.
c) Robust Self-Locking Function for Increased Safety
The Self-locking emergency stop lockout is equipped with an integrated sticking mechanism that can permanently attach it to the control device. This blocks any accidental touches or interference with the emergency button. The lockout securely affixes itself to work only where its function is intended to operate. The level of security ensures that equipment is safe from accidental activation or misuse, especially in environments where precision is crucial enough to help maintain workplace safety.
d) Versatile Size Compatibility for Wide Use
This versatile lockout device is designed to fit various emergency stop buttons with a diameter of 22mm, covering up to 45mm in diameter and 35mm high. Further versatility of the lockout device makes it well-matched for a wide range of applications across a range of industries. For those unique instances where this does not fit a particular setup, BOZZYS has made provisions for customization in personalizing lockout to individual equipment needs.
e) Personalized Safety Features and Labeling Options
For BOZZYS, safety and clarity are synonymous. Customers can customize their Self-locking emergency stop lockout devices with personalized labels, safety messages, equipment numbers, or customized instructions. This customization promotes safe operations in that each lockout device would give clear directions, making life easier for the employees who have to use the equipment safely.
Specifications

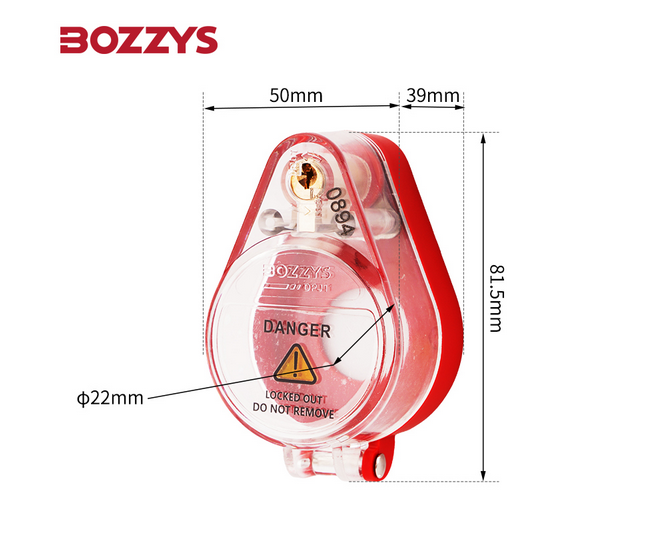

- Switch Compatibility: 22mm diameter switches.
- Accommodates Button Size: Up to 45mm in diameter, 35mm in height.
- Lock Mechanism: An integrated lockout core eliminates the use of an external padlock.
- Design: Transparent cover with a hinged door for easy access, offering full visibility of the target. Safety warnings, equipment IDs, or operational instructions can be added to the device body.
- Quality assurance: We provide all BOZZYS lockout devices with a one-year warranty, reflecting our concern for safety and quality.
Applications and Usage
The Self-locking emergency stop lockout is an adaptive and efficient safety device suitable for various applications within the industrial setting. It is suitable for the following kinds of control equipment among others:
- Circuit Breaker: They prevent access by unauthorized persons to important electrical circuits. It minimizes the chances of an accidental or unauthorized start-up of power.
- Wall Switches: It prevents wall switches located in industries from being turned on by unauthorized persons.
- Stop Buttons and Emergency Push-Pull Switches: These are also pervasive in manufacturing and assembly areas. Safety electrical plugs for devices and equipment where operation of the power source needs to be restricted.
The Self locking Emergency Stop Lockout is also suitable for a variety of industrial applications, such as factories, warehouses, and power plants, among others, where equipment needs safety with strength to maintain a safe working environment. Our manufacturing process ensures that each lockout meets the highest safety standards, preventing your equipment from turning on accidentally or without authorization.
More BOZZYS Safety Products
BOZZYS takes pride in its wide range of safety devices for making work spots accident-free. Along with the Self-locking emergency stop lockout, we also have a set of other products serving the purpose of locking various types of equipment and increasing the arc of operational safety.
- Safety Padlocks: High-security padlocks are used, fitting well with all other lockout devices for added protection.
- Valve Locks: BOZZYS designs valve locks for industrial valve controls that prevent unauthorized adjustments in very high-stake environments.
- Industrial Electrical Lockouts: They are designed for electrical systems, thus providing protection and security to the power controls.
- Lockout Stations: Centrally positioned units for the storage, organization, and management of safety lockouts with efficiency; such stations make access easier and facilitate smooth safety management within the facility.
All the products from BOZZYS support every operation of industries securely and efficiently, and flexible customization options may be available to meet such operational requirements.
Why BOZZYS?
With over a decade in the lockout industry, BOZZYS has become a reputable trusted partner in industrial safety. We have worked with significant enterprises all over the world and remain one of the key names remembered for quality products and the ability to adapt to unique customer needs. Our valued clients rely on us for the following reasons:
- Extensive Customization: You can customize BOZZYS for Corporate Branding, Color of your choice, and custom labeling according to corporate standards or specific safety protocols.
- Dedicated Safety Solutions: We have created solutions working with specific types of equipment to ensure that every lockout device fits the intended application perfectly. From the complex lockout needs to simple modifications, BOZZYS has the expertise to do just about anything that is required.
- Onsite Planning and Customization of the Lockout Process: Our professionals help customers design the lockout plans according to their needs for equipment and operational demand. This helps in developing a safer, compliant-to-regulation workplace.
BOZZYS Commitment to Quality
Indeed, all BOZZYS safety lock products come with a one-year warranty, showcasing our commitment to quality and reliability. With this assurance, when investing in the products of BOZZYS, you can count on them for decent protection. Focusing on durability and functionality, we turn over the key to companies that have safer workplaces.
Contact Us for Lockout Solutions
At BOZZYS we pride ourselves on offering products to meet the specific needs of every customer. If Self-locking emergency stop lockout is not the product you’re in search of, please contact us and we will do our best to help. We can customize labels, signs, or device modifications to meet your needs and include your Safety Message, Equipment Number, and Operating Instructions for safe and efficient operation.
Want more from your safety procedures? Check our product page, Self-locking Emergency Stop Lockout: https://www.bozzys.com/self-locking-emergency-stop-lockout-product/. From technical assistance and on-site design to implementation and even after-sales service, we will provide the perfect lockout solution tailored to meet the demands of your equipment and operations. Count on BOZZYS for your safety.
